Description

Rim Model: MSR203-25

Material : Toray T700 Carbon Fiber

Brake: Rim brake/Disc brake compatible

Rim Type :Tubeless ready

Intended Use : Child’s bike/Balance bike/Push Bike

Weave : UD/3K/12K

Finishing : Matt/Glossy

Spoke Hole : 10-16Holes (customizable)

Size : 12”/12er

Depth : 25mm

Inner/Outer Width : 25mm/29mm

ERD : 170mm

Rim Weight : 86+/-5g

Profile: Symmetric (0mm)

Max Cyclist Weight : 135kg/ 176lbs

Spoke Hole Angle : ±12°(customizable)

Spoke Tension : 100 ~110kgf front, 125~135kgf rear drive side

Max Tire Pressure (with 25C) : 100psi/ 6.9bar

Recommended Tire Width : 12”203

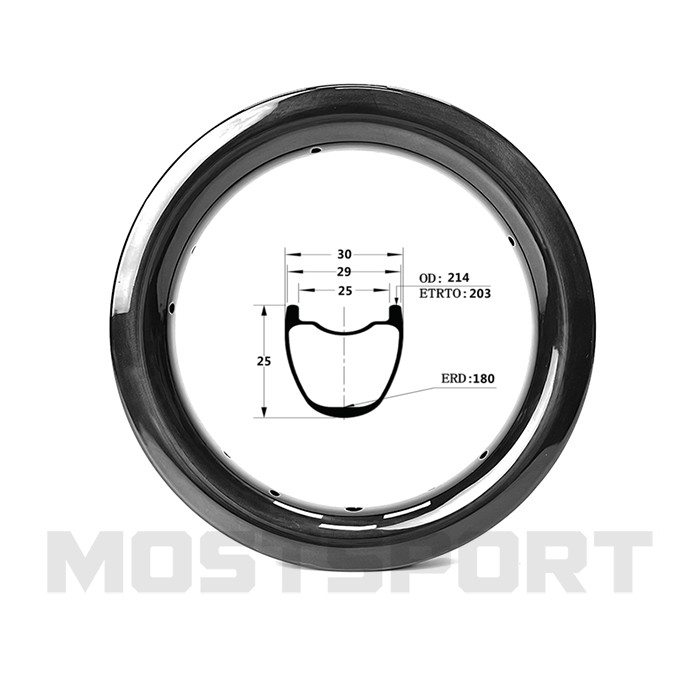

Introduction: 12”203 carbon rims 25mm depth 29mm wide for balance bike/child’s bike
