Description

Rim Model: MSR305-36

Material : Toray T700 Carbon Fiber

Brake: Rim brake/Disc brake compatible

Rim Type :Clincher

Intended Use : Folding bike

Weave : UD/3K/12K

Finishing : Matt/Glossy

Spoke Hole : 10-28Holes (customizable)

Size : 16er/16inch

Depth : 36mm

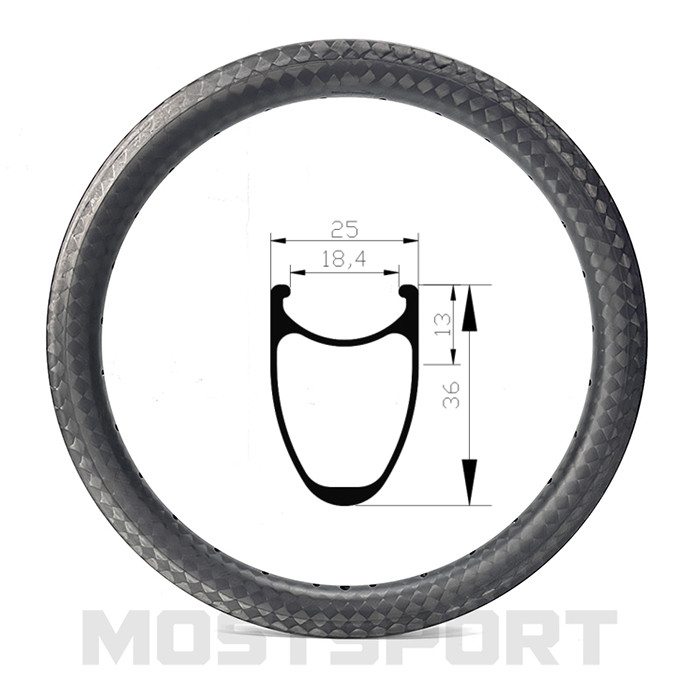

Inner/Outer Width : 18.4mm/25mm

ERD : 253mm

Rim Weight : 220+/-5g

Profile: Symmetric (0mm)

Max Cyclist Weight : 135kg/ 176lbs

Spoke Hole Angle : ±8°(customizable)

Spoke Tension : 100 ~110kgf front, 125~135kgf rear drive side

Max Tire Pressure (with 25C) : 120psi/ 8.2bar

Recommended Tire Width : 25-47

Introduction: 16”305 carbon rims 36mm depth 25mm wide for Moulton, Dahon folding bike,etc
