Description

Rim Model: MSR369-40

Material : Toray T700 Carbon Fiber

Brake: Rim brake/Disc brake compatible

Rim Type :Tubeless ready

Intended Use : Folding bike/Balance bike/Push Bike

Weave : UD/3K/12K

Finishing : Matt/Glossy

Spoke Hole : 10-24Holes (customizable)

Size : 17er/17inch

Depth : 40mm

Inner/Outer Width : 16mm/23mm

ERD : 210mm

Rim Weight : 310+/-10g

Profile: Symmetric (0mm)

Max Cyclist Weight : 135kg/ 176lbs

Spoke Hole Angle : ±8°(customizable)

Spoke Tension : 100 ~110kgf front, 125~135kgf rear drive side

Max Tire Pressure (with 25C) : 120psi/ 8.2bar

Recommended Tire Width : 16”369

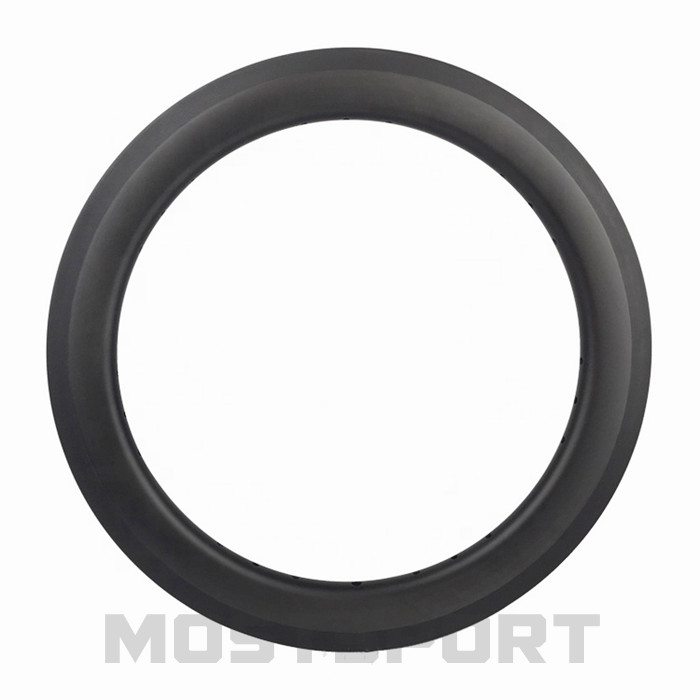

Introduction: 17”369 carbon rims 40mm depth 23mm wide for Moulton bike,Folding bike
