Description

Rim Model: MSR406-45C

Material : Toray T700 Carbon Fiber

Brake: Rim brake/Disc brake compatible

Rim Type :Clincher/Tubeless ready

Intended Use : BMX/Folding bike

Weave : UD/3K/12K

Finishing : Matt/Glossy

Spoke Hole : 16-32Holes (customizable)

Size : 20er/20inch 406

Depth : 45mm

Inner/Outer Width : 18mm/26mm

ERD : 339mm

Rim Weight : 300+/-5g

Profile: Symmetric (0mm)

Max Cyclist Weight : 135kg/ 176lbs

Spoke Hole Angle : ±8°(customizable)

Spoke Tension : 100 ~110kgf front, 125~135kgf rear drive side

Max Tire Pressure (with 25C) : 120psi/ 8.2bar

Recommended Tire Width : 25-47

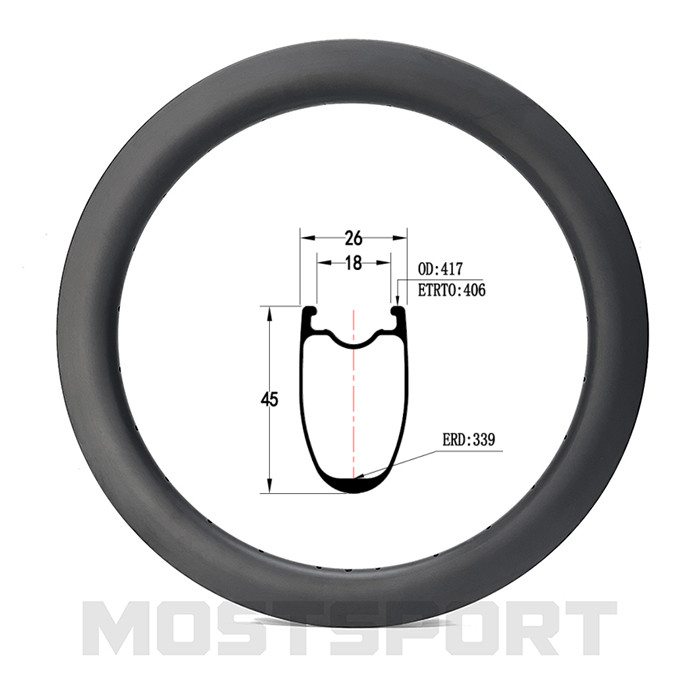

Introduction: 20”406 Tubeless carbon rims 45mm depth 26mm wide for Dahon bike,Tern bike, folding bike,etc
