Description

Rim Model: MSR406-50C

Material : Toray T700 Carbon Fiber

Brake: Rim brake/Disc brake compatible

Rim Type :Clincher/Tubeless ready

Intended Use : BMX/Folding bike

Weave : UD/3K/12K

Finishing : Matt/Glossy

Spoke Hole : 16-32Holes (customizable)

Size : 20er/20inch 406

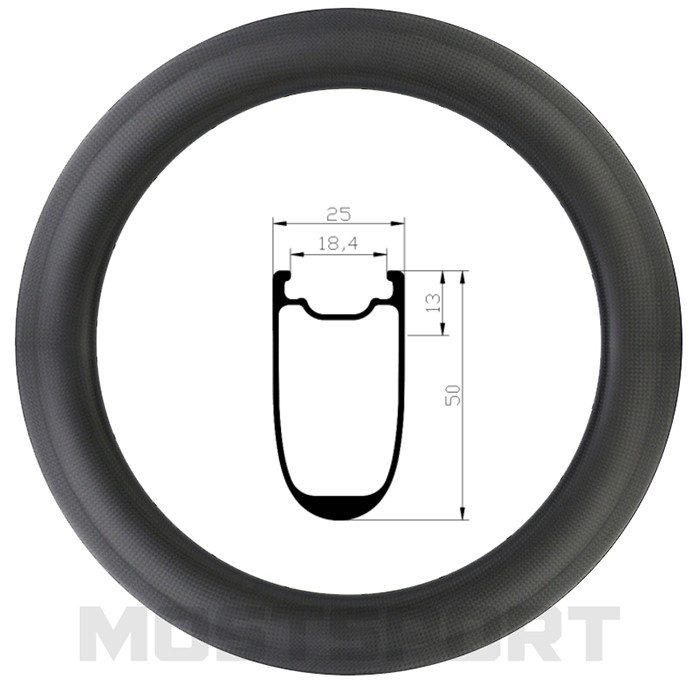

Depth : 50mm

Inner/Outer Width : 18.4mm/25mm

ERD : 326mm

Rim Weight : 350+/-5g

Profile: Symmetric (0mm)

Max Cyclist Weight : 135kg/ 176lbs

Spoke Hole Angle : ±8°(customizable)

Spoke Tension : 100 ~110kgf front, 125~135kgf rear drive side

Max Tire Pressure (with 25C) : 120psi/ 8.2bar

Recommended Tire Width : 25-47

Introduction: 20”406 Tubeless carbon rims 50mm depth 25mm wide for BMX,Dahon bike,Tern bike, folding bike,etc
