Description

Rim Model: MSR45CD-01

Material : Toray T700 Carbon Fiber

Brake: Disc brake / Rim brake compatible

Rim Type :Tubeless ready

Intended Use : Gravel /CX/Road

Weave : UD/3K/12K

Finishing : Matt/Glossy

Spoke Hole : 16-32Holes (customizable)

Size : 700C

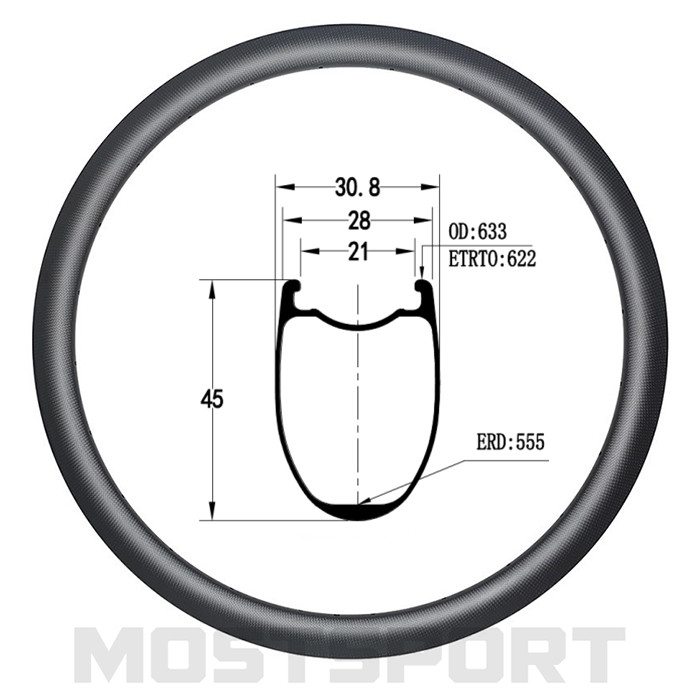

Depth : 45mm

Inner/Outer Width : 21mm/28mm

ERD : 555mm

Rim Weight : 465+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight : 135kg/ 298lbs

Spoke Hole Angle : ±8°(customizable)

Spoke Tension : 100 ~110kgf front, 125~135kgf rear drive side

Max Tire Pressure (with 25C) : 120psi/ 8.27bar

Recommended Tire Width : 23C-43C

Introduction: 700C road disc brake carbon rims 28mm wide 45mm depth for cyclocross and gravel bicycle
