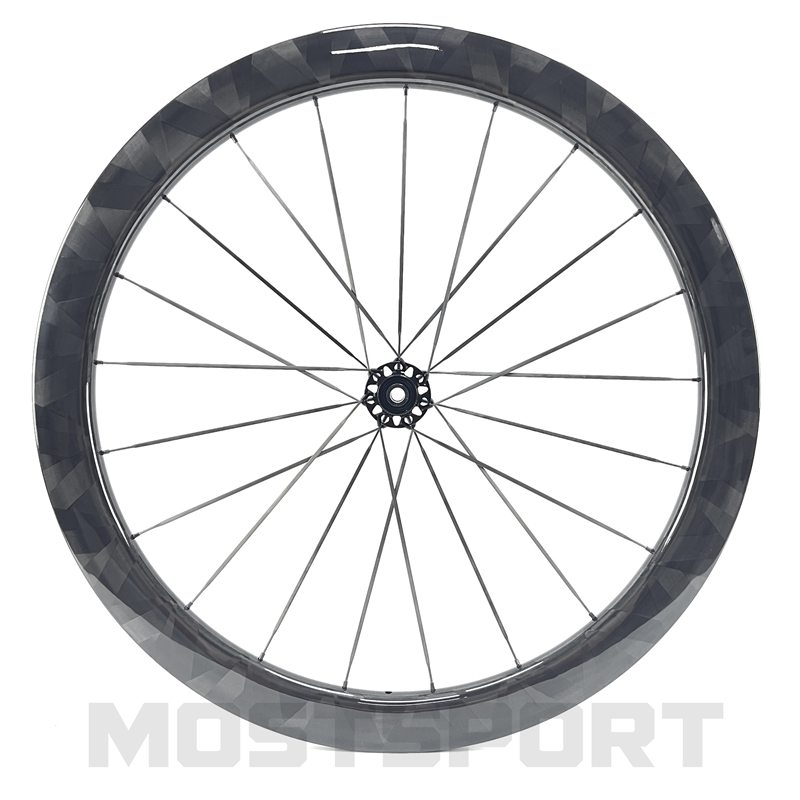

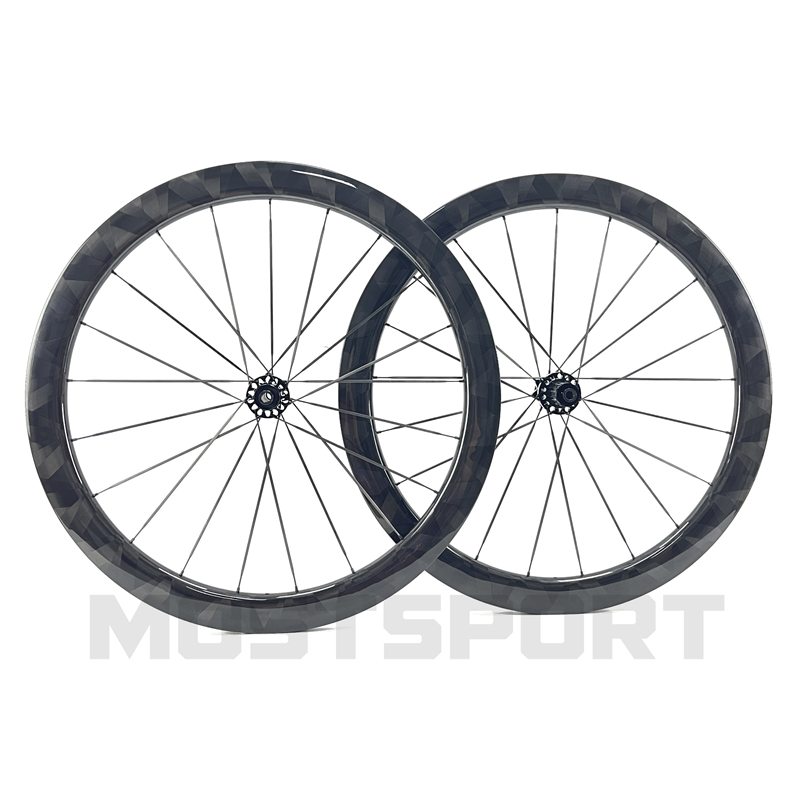

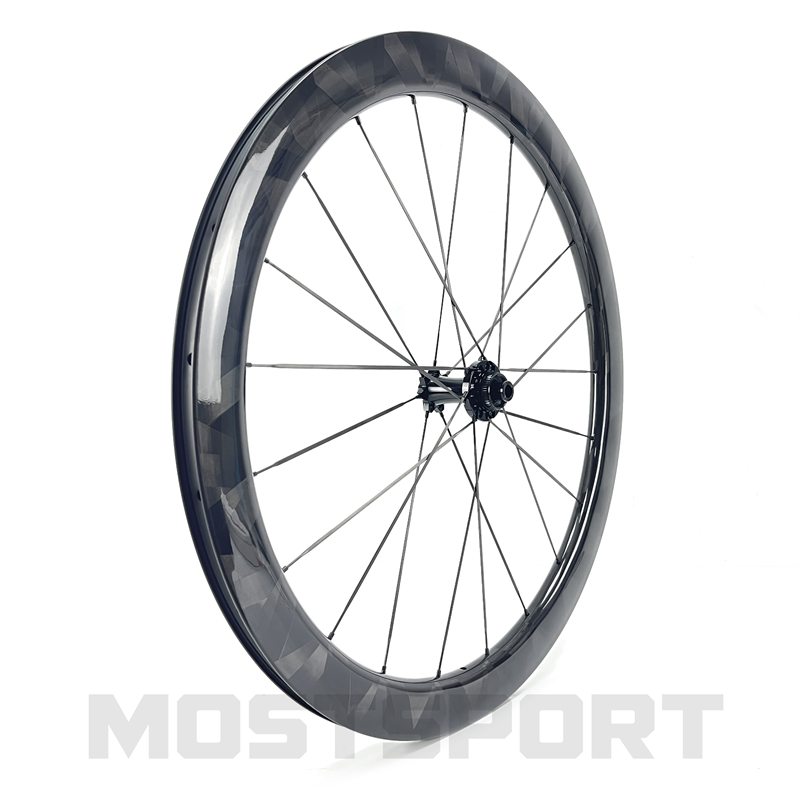

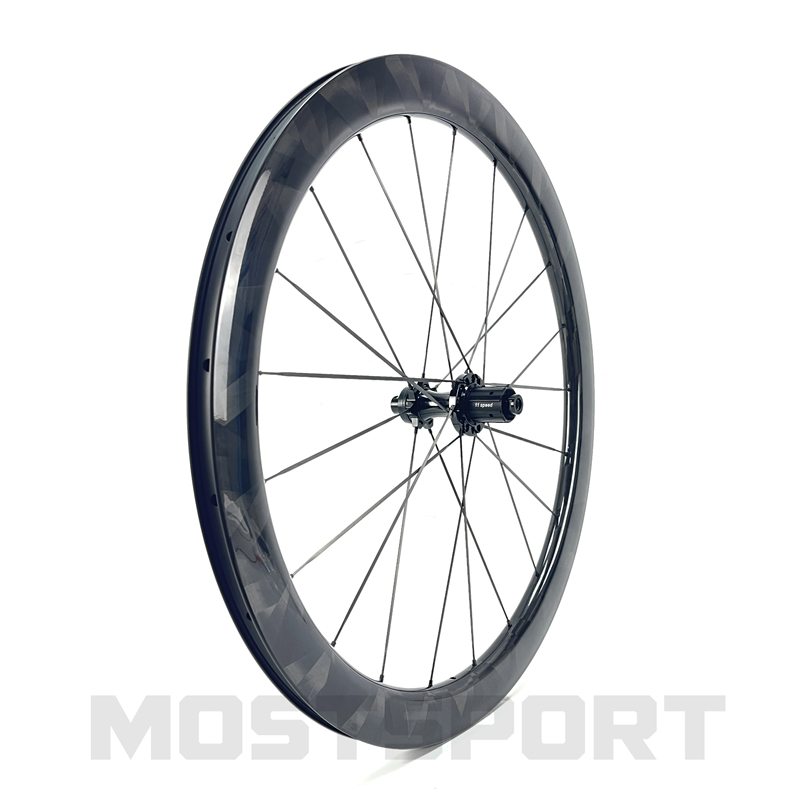

[caption id="attachment_789" align="alignnone" width="800"] 700C 50mm Carbon spoke disc brake wheelset[/caption]
[caption id="attachment_784" align="alignnone" width="800"]
700C Road disc brake carbon spoke disc brake wheelset[/caption]
[caption id="attachment_785" align="alignnone" width="800"]
700C Road disc brake carbon spoke disc brake wheelset[/caption]
[caption id="attachment_786" align="alignnone" width="800"]
700C Road disc brake carbon spoke disc brake wheelset[/caption]
[caption id="attachment_788" align="alignnone" width="800"]
700C Road disc brake carbon spoke disc brake wheelset[/caption]700C Carbon Spoke Aerodynamic Road Disc Brake 50mm Depth Carbon Wheels
MOSTSPORT CSHB02 Ceramic Bearing Hub For Carbon Spoke
Super Light Weight Carbon Spoke 2.8g/pc
Toray T700 Carbon Fiber Materials Carbon Rims,Premium Layer-up System,Strict Testing Standards And Quality Inspection System
100% Handbuilt Carbon Wheels ,Three Years Warranty Offered For Carbon Rims
All Decal Options Available Including Full Custom
Rims Specifications
Rim Model: MSR50C-02
Material: Toray T700 Carbon Fiber
Size: 700C (ETRTO 622mm)
Weave : UD/3K/12K (Customizable)
Finishing : Matt/Glossy (Customizable)
Intended Use: Road/CX/Gravel
Rim Type : Clincher/Tubeless
Tubeless Capable: Yes
Inner/Outer Width: 19mm/26mm
Depth: 50mm
Profile: Symmetric (0mm)
Max Cyclist Weight : 130kg/ 287lbs
Spoke Hole Angle: ±8° (Customizable)
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure: 110psi/ 7.58bar
Recommended Tire Width: 21C~38C
Hub/Spokes/Nipples Specifications

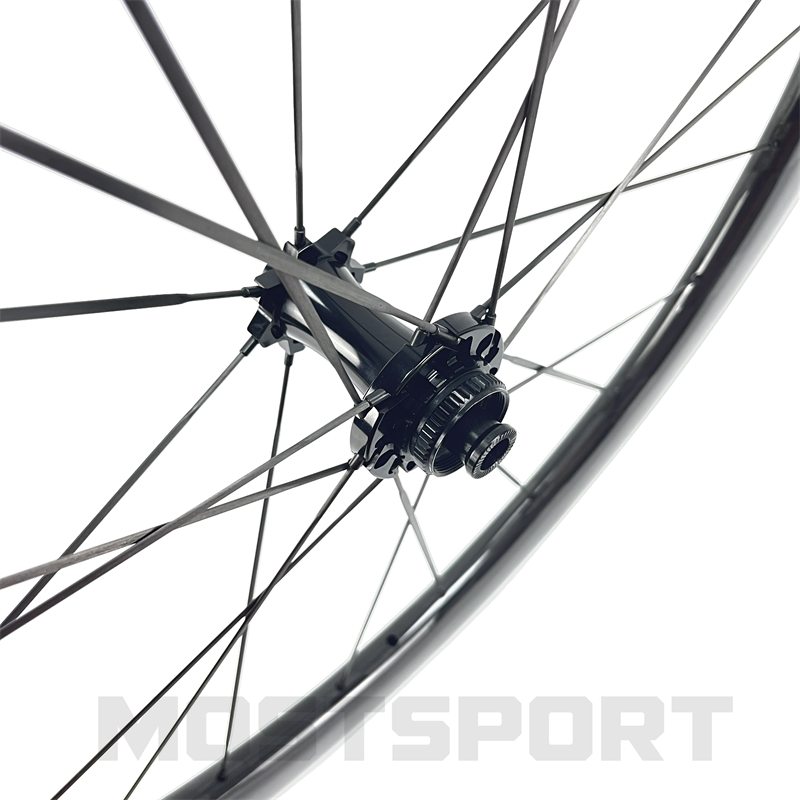

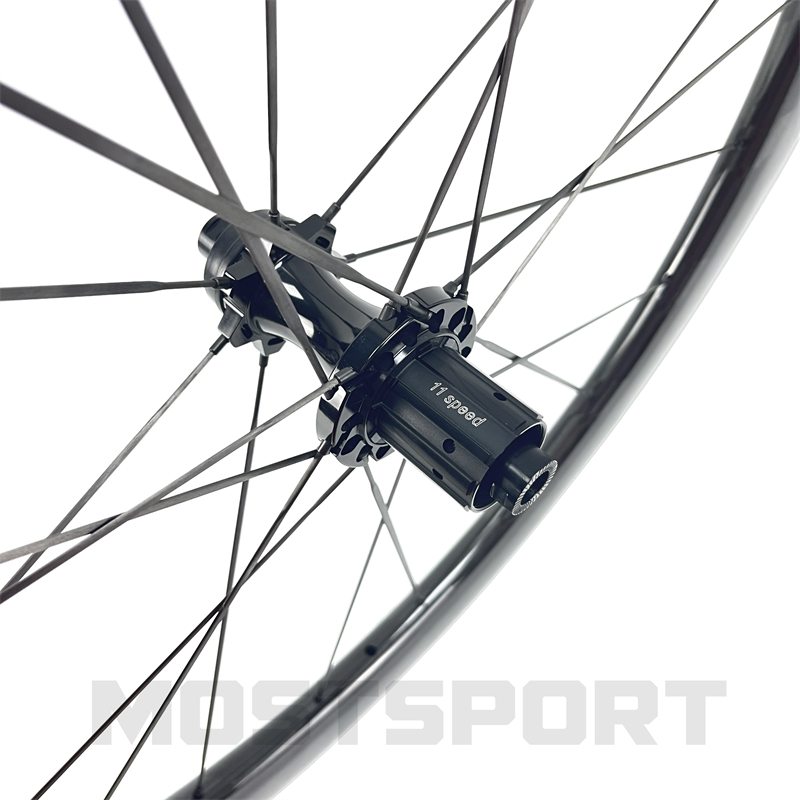

Hub Model: MOSTSPORT CSHB02 Ceramic Bearing Hub For Carbon Spoke
Disc Hub Rotor: Center Lock
Hub Front Axle Size: 12*100mm
Hub Rear Axle Size: 12*142mm
Hub Driver Body: Shimano 10-11S,Sram XDR 12S
Hole: 21-21H
Spokes: MOSTSPORT CS22 Carbon Spoke Aero Bladed Straight-Pull (Customizable)
Nipples: External Alloy Nipple(Customizable)
Wheels Weight: 1349±30g
Introduction: 700C Carbon Spoke Aerodynamic Road Disc Brake 50mm Depth Carbon Wheels
