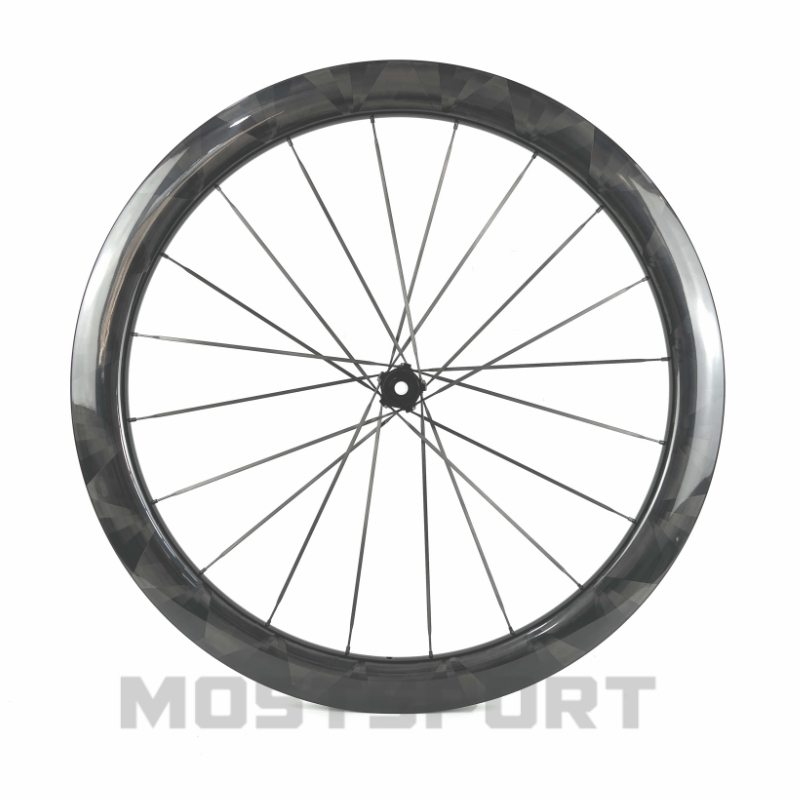

[caption id="attachment_795" align="alignnone" width="800"] MSCSW50281 carbon spoke wheels for road disc brake carbon wheelset[/caption]
[caption id="attachment_797" align="alignnone" width="800"]

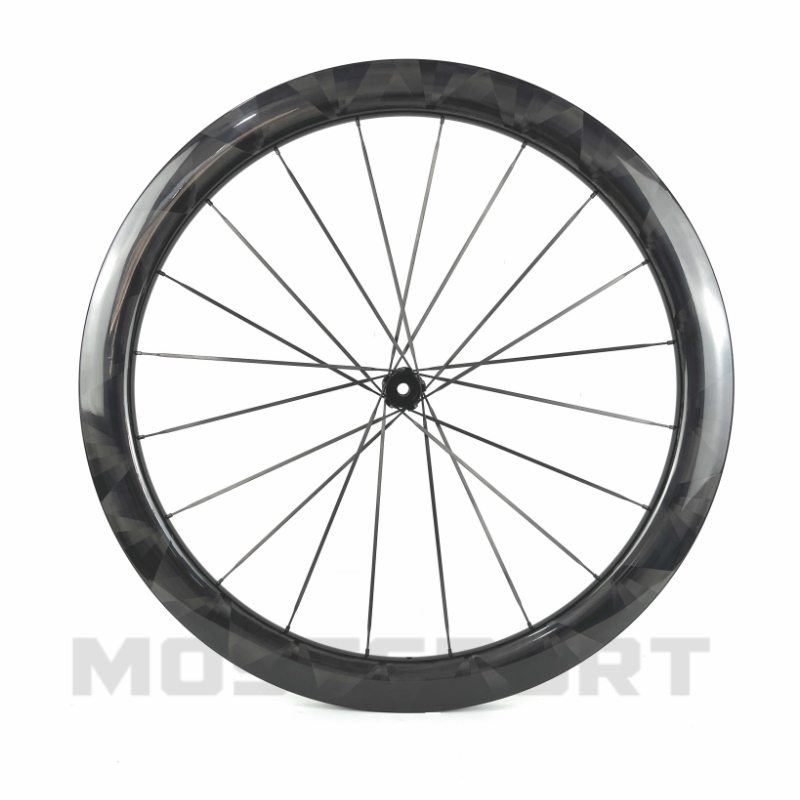

MSCSW50281 carbon spoke wheels for road disc brake carbon wheelset[/caption]
[caption id="attachment_796" align="alignnone" width="800"]

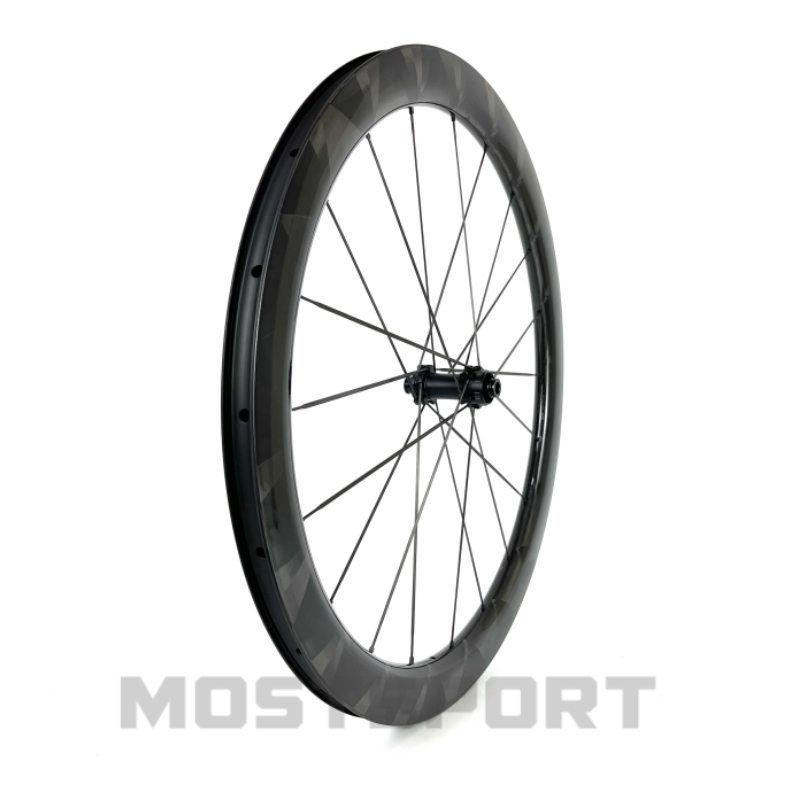

MSCSW50281 carbon spoke wheels for road disc brake carbon wheelset[/caption][caption id="attachment_800" align="alignnone" width="800"]
MSCSW50281 carbon spoke wheels for road disc brake carbon wheelset[/caption]
[caption id="attachment_802" align="alignnone" width="800"]

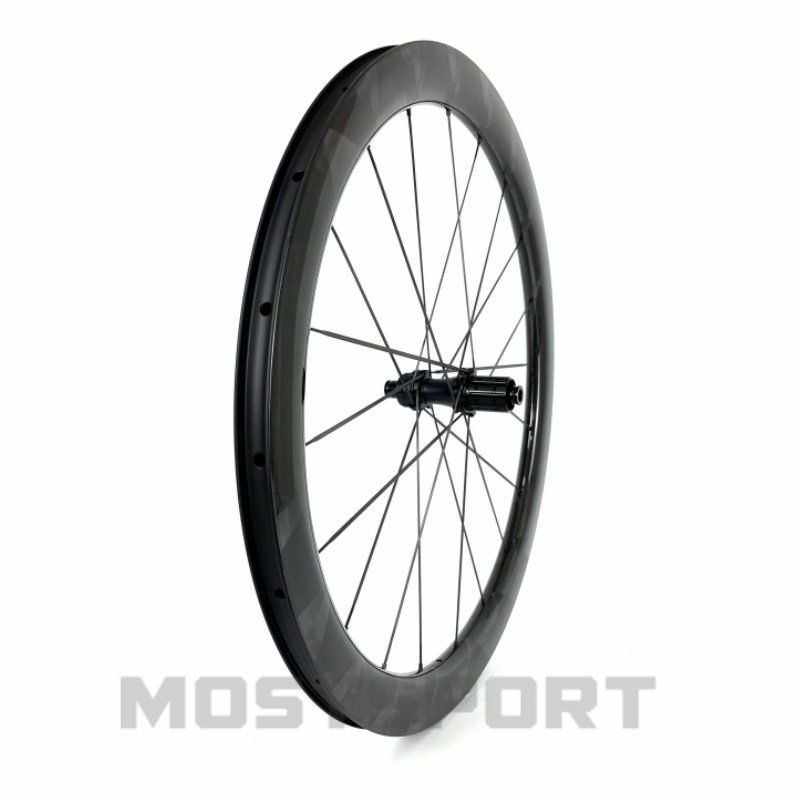

MSCSW50281 carbon spoke wheels for road disc brake carbon wheelset[/caption]
[caption id="attachment_798" align="alignnone" width="800"]
MSCSW50281 carbon spoke wheels for road disc brake carbon wheelset[/caption]
[caption id="attachment_801" align="alignnone" width="800"]
MSCSW50281 carbon spoke wheels for road disc brake carbon wheelset[/caption]700C Carbon Spoke Aerodynamic Road Disc Brake 50mm Depth Carbon Wheels 36T Ratchet System Hubs Ceramic Bearing

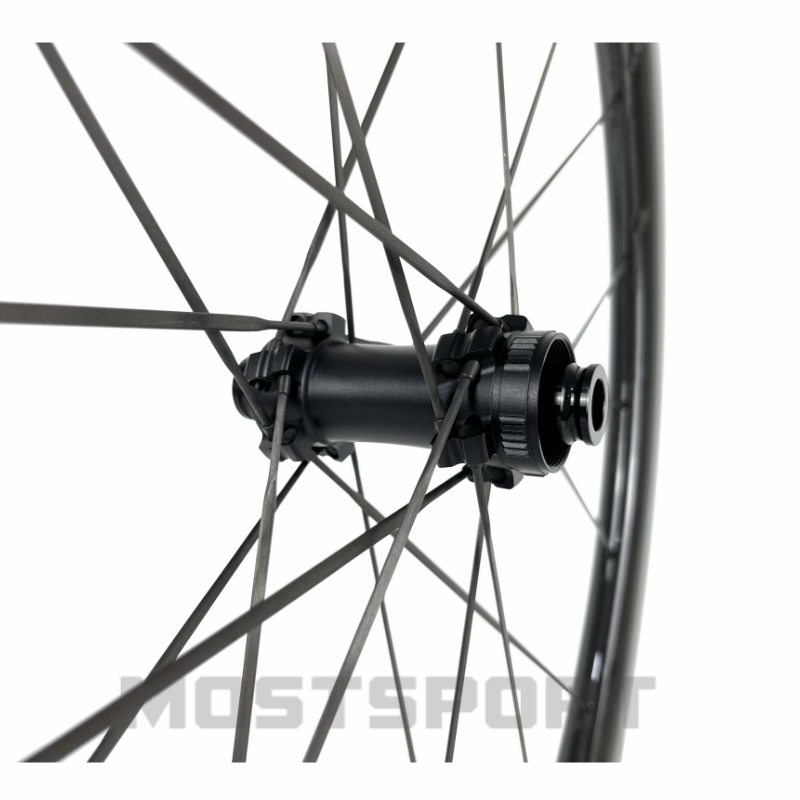

MOSTSPORT CSHB02 Ceramic Bearing Hub For Carbon Spoke
Super Light Weight Carbon Spoke 2.8g/pc
Toray T700 Carbon Fiber Materials Carbon Rims,Premium Layer-up System,Strict Testing Standards And Quality Inspection System
100% Handbuilt Carbon Wheels ,Three Years Warranty Offered For Carbon Rims
Rims Specifications
Rim Model: MSR50CD-01
Material: Toray T700 Carbon Fiber
Size: 700C (ETRTO 622mm)
Weave : UD/3K/12K (Customizable)
Finishing : Matt/Glossy (Customizable)
Intended Use: Road/CX/Gravel
Rim Type : Clincher/Tubeless
Tubeless Capable: Yes
Inner/Outer Width: 21mm/28mm
Depth: 50mm
Profile: Symmetric (0mm)
Max Cyclist Weight : 130kg/ 287lbs
Spoke Hole Angle: ±8° (Customizable)
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure: 110psi/ 7.58bar
Recommended Tire Width: 23C~43C
Hub/Spokes/Nipples Specifications

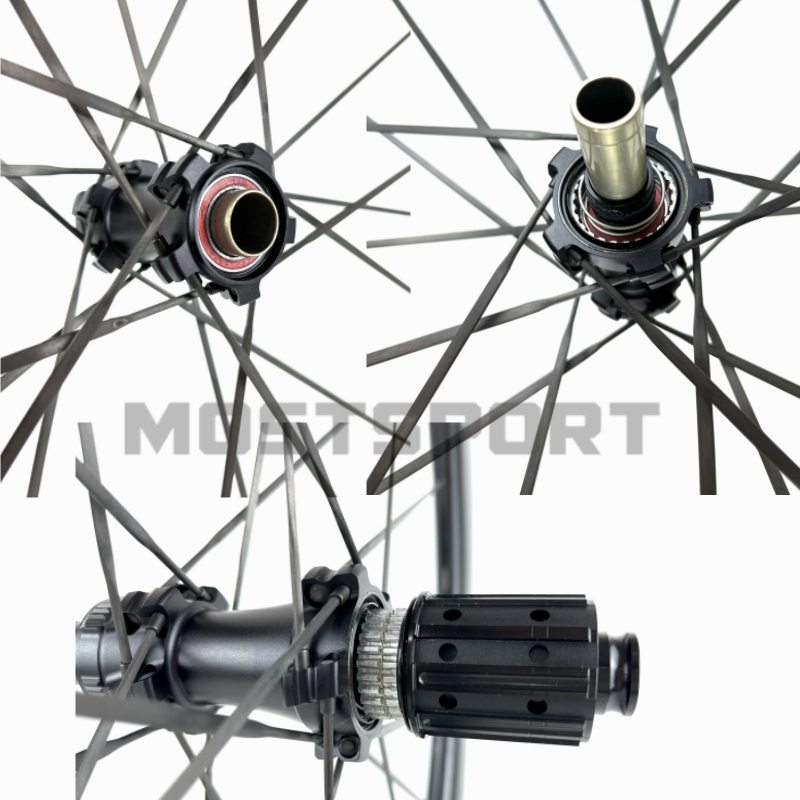

Hub Model: MOSTSPORT CSHB03 Ceramic Bearing Hub 36T Ratchet System
Disc Hub Rotor: Center Lock
Hub Front Axle Size: 12*100mm
Hub Rear Axle Size: 12*142mm
Hub Driver Body: Shimano 10-11S,Sram XDR 12S
Hole: 20-20H
Spokes: MOSTSPORT CS22 Carbon Spoke Aero Bladed Straight-Pull (Customizable)
Nipples: External Alloy Nipple(Customizable)
Wheels Weight: 1302±30g
Introduction: 700C Carbon Spoke Aerodynamic Road Disc Brake 50mm Depth Carbon Wheels 36T Ratchet System Hubs Ceramic Bearing
