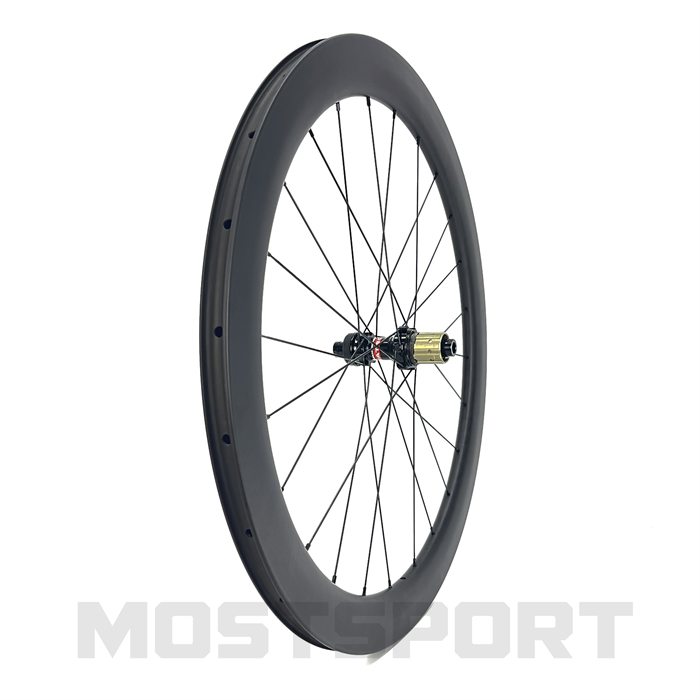

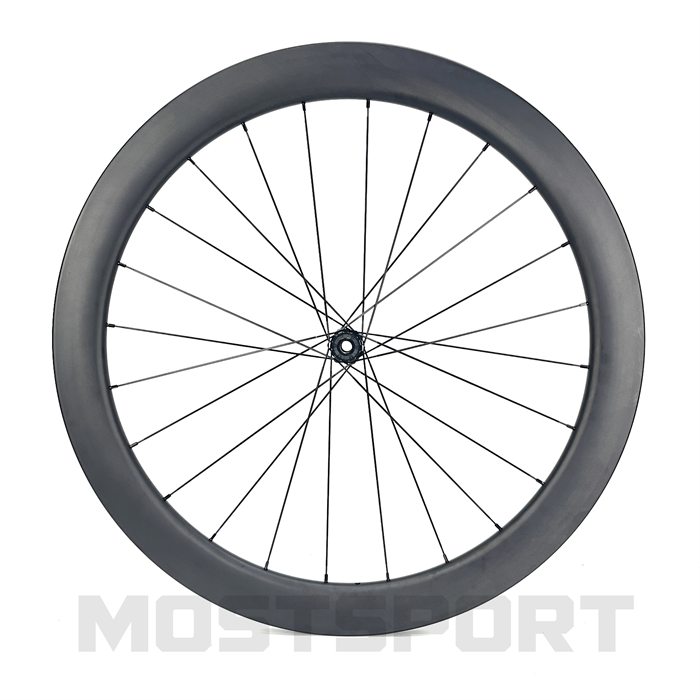

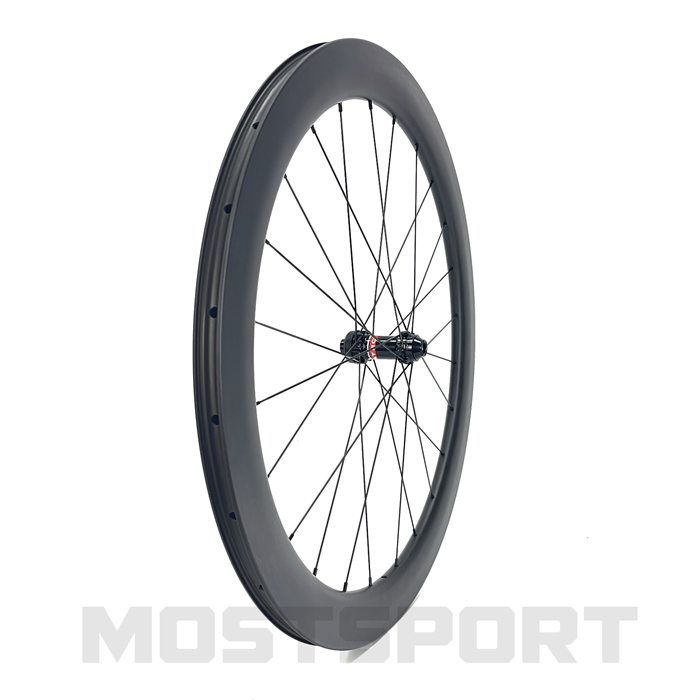

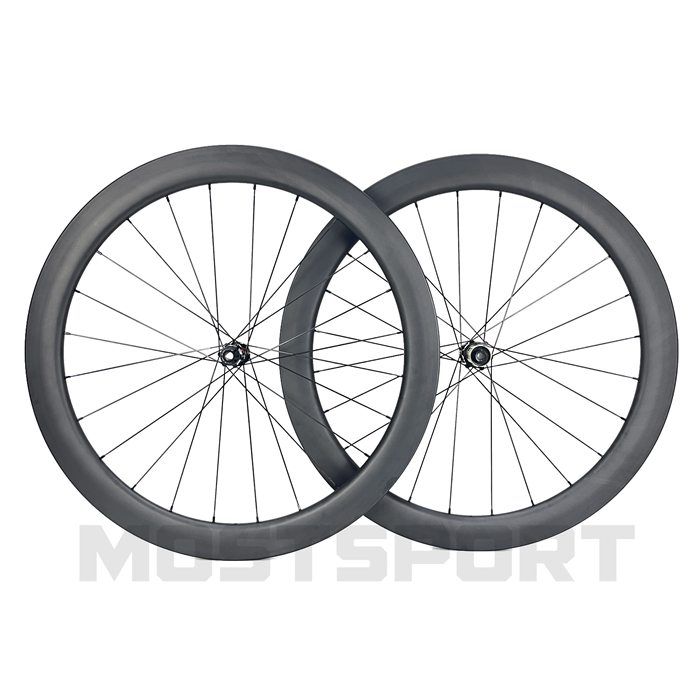

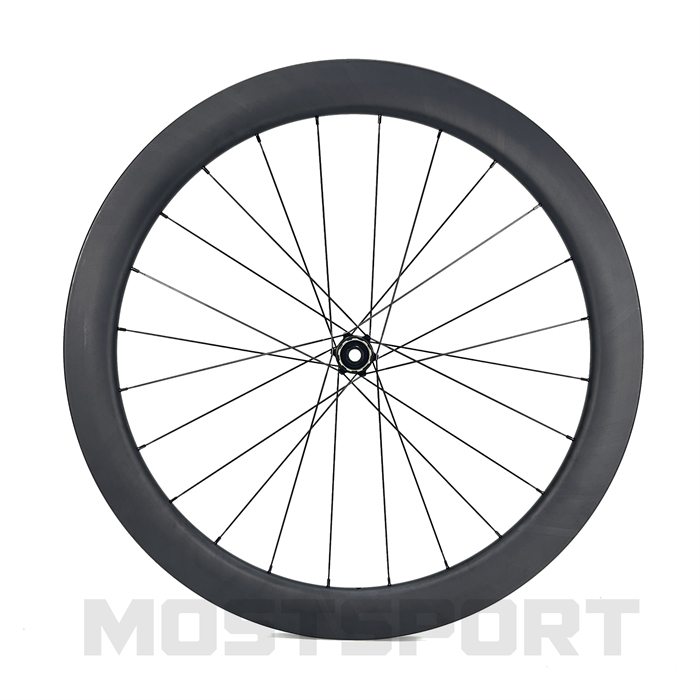

700C Aerodynamic Road Disc Brake 55mm Depth Carbon Wheels
Novatec D411SB-D412SB Hubs and Pillar Aero 1423 spoke
Toray T700 Carbon Fiber Materials Carbon Rims,Premium Layer-up System,Strict Testing Standards And Quality Inspection System
100% Handbuilt Carbon Wheels ,Three Years Warranty Offered For Carbon Rims
All Decal Options Available Including Full Custom
Rims Specifications
Rim Model: MSR55C-02
Material: Toray T700 Carbon Fiber
Size: 700C (ETRTO 622mm)
Weave : UD/3K/12K (Customizable)
Finishing : Matt/Glossy (Customizable)
Intended Use: Road/CX/Gravel
Rim Type Clincher
Tubeless Capable: Yes
Inner/Outer Width: 19mm/26mm
Depth: 55mm
Profile: Symmetric (0mm)
Max Cyclist Weight : 130kg/ 287lbs
Spoke Hole Angle: ±8° (Customizable)
Spoke Tension: 120~130kgf front disc side and rear drive side
Max Tire Pressure: 110psi/ 7.58bar
Recommended Tire Width: 21C~38C
Hub/Spokes/Nipples Specifications
Hub Model: Novatec D411SB-D412SB (Customizable)
Disc Hub Rotor: Center Lock
Hub Front Axle Size: 12*100mm,15*100mm,QR / 100mm
Hub Rear Axle Size: 12*142mm,QR / 135mm
Hub Driver Body: Shimano/Sram/Campy 10-11S,Sram XDR 12S
Hole: 24-24H
Spokes: Pillar 1423 Aero Bladed Straight-Pull (Customizable)
Nipples: CN External 14mm Alloy (Customizable)
Wheels Weight: 1649±30g
Introduction: 700C Aerodynamic Road Disc Brake 50mm Depth Carbon Wheels
