700C Wake Carbon Rims 4045mm Depth 26mm Width[/caption]
[caption id="attachment_713" align="alignnone" width="700"]
700C Wake Carbon Rims 4045mm Depth 26mm Width[/caption]
[caption id="attachment_712" align="alignnone" width="700"]
700C Wake Carbon Rims 4045mm Depth 26mm Width[/caption]
[caption id="attachment_717" align="alignnone" width="700"]
700C Wake Carbon Rims 4045mm Depth 26mm Width[/caption]
[caption id="attachment_715" align="alignnone" width="700"]
700C Wake Carbon Rims 4045mm Depth 26mm Width[/caption]
[caption id="attachment_714" align="alignnone" width="700"]
700C Wake Carbon Rims 4045mm Depth 26mm Width[/caption]

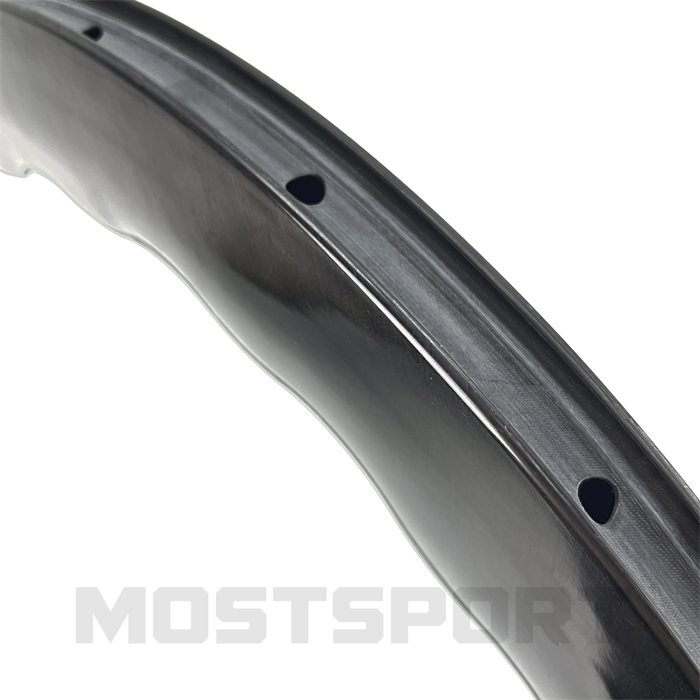

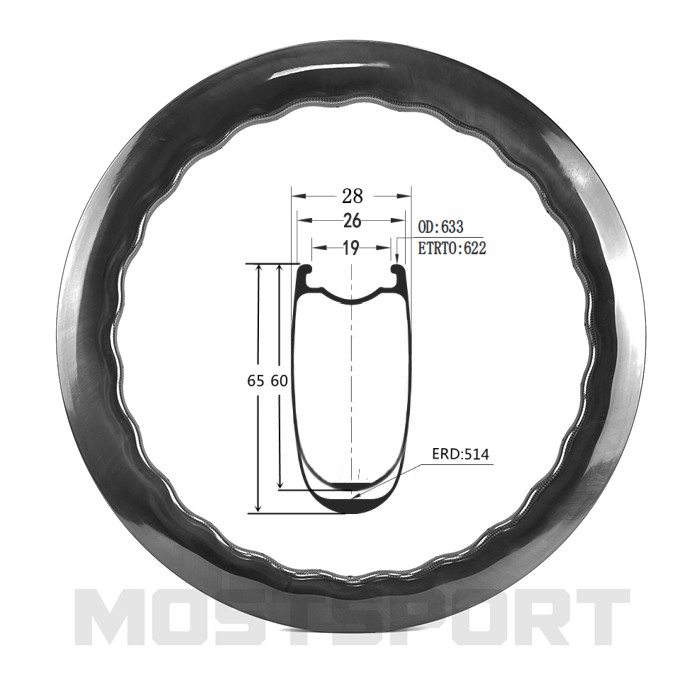

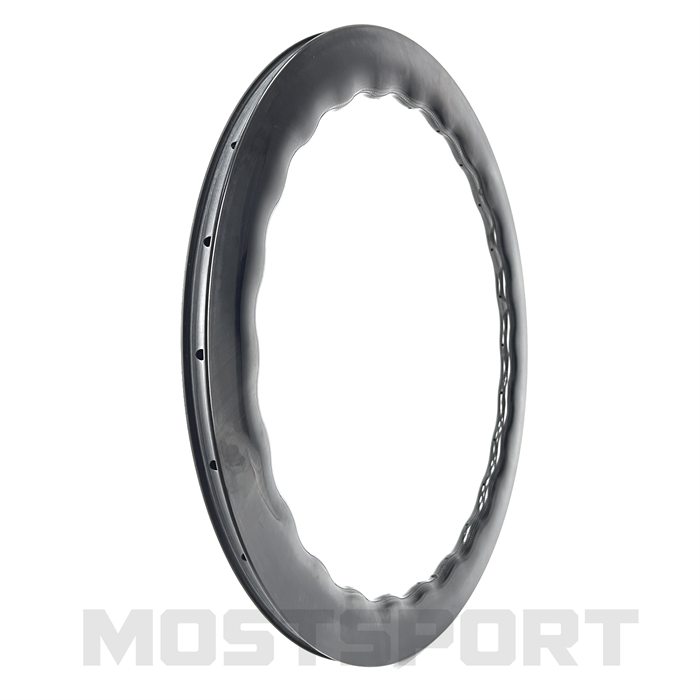

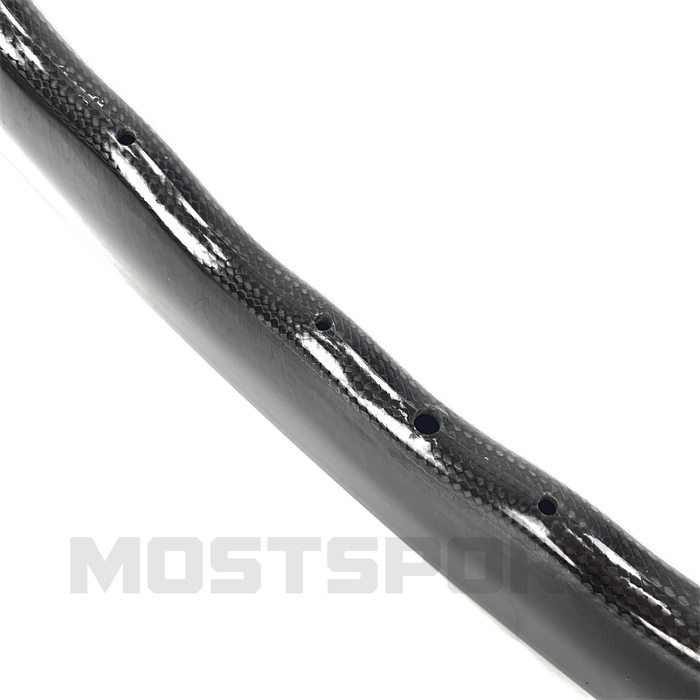

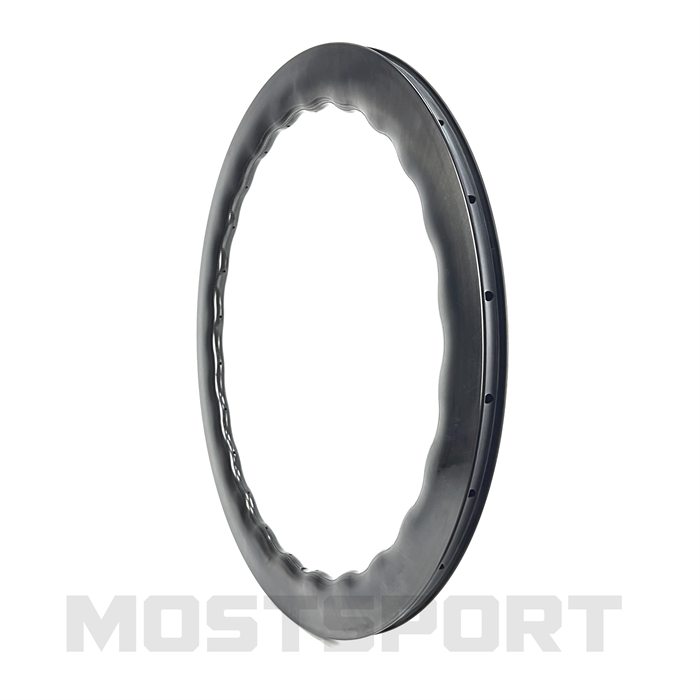

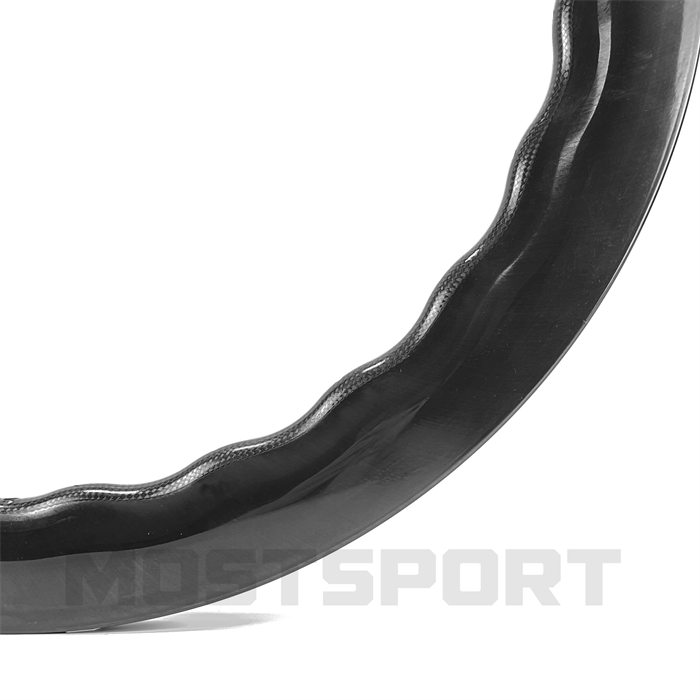

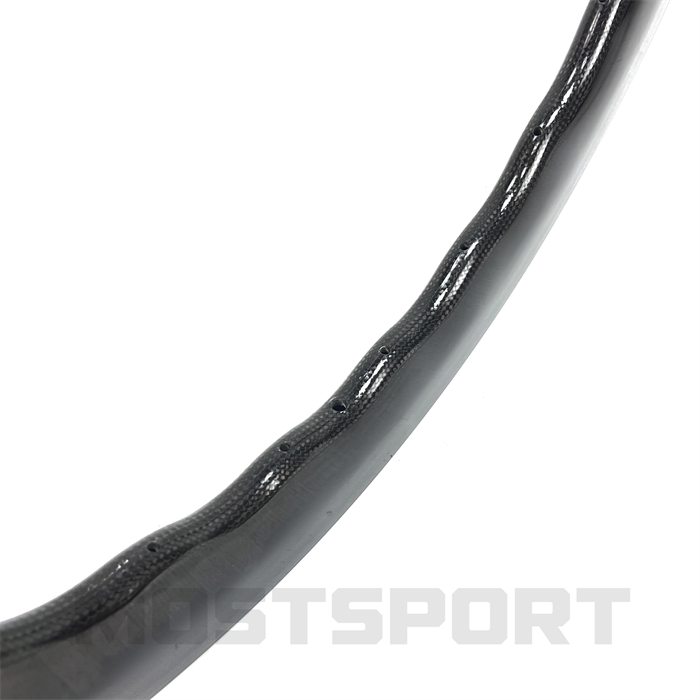

700C Wake Carbon Rims 6065mm Depth 26mm Width
Rim Model: MSR4045C
Material : Toray T700 Carbon Fiber
Brake: Rim brake/Disc brake compatible
Rim Type :Tubeless ready
Intended Use : Road
Weave : UD/3K/12K
Finishing : Matt/Glossy
Spoke Hole : 24Holes
Size : 700C
Depth : 40/45mm
Inner/Outer Width : 19mm/26mm
ERD : 554mm
Rim Weight : 450+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight : 135kg/ 298lbs
Spoke Hole Angle : ±8°(customizable)
Spoke Tension : 100 ~110kgf front, 125~135kgf rear drive side
Max Tire Pressure (with 25C) : 120psi/ 8.27bar
Recommended Tire Width : 21C-38C
Introduction: 700C Road Wake carbon rims 40mm /45mm depth 26mm wide rim brake or disc brake
